Casing Spool Double Studded Adapter 13-5/8" 10,000 Psi X 11" 5,000 Psi.

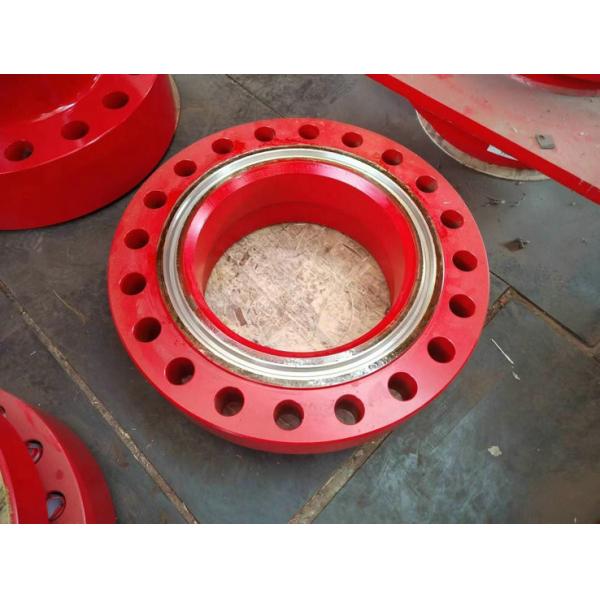

Double Studded Adapter Flange (DSAF) or Double Studded Adapter (DSA) is a flange with a through bore and a ring groove on each side, drilled and tapped bolt hole sets on both sides and tapped end studs complete with nuts fitted on both sides. Unlike a spacer, the two sides are usually different in size and/or pressure rating. Double studded adapter flanges are commonly utilised to connect and adapt flanges with different nominal sizes, pressure ratings, and configurations.

Casing Spool Double Studded Adapter​ Parameter

FEATURES:

1. Casing Spool Double Studded Adapter is the part that is often used in the wellhead system.
2. DSA Casing Spool Double Studded Adapter is designed and manufactured in accordance with API 6A standard.
3. DSA Casing Spool Double Studded Adapter is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
4. Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
