13 5/8"-5000PSI Double Ram Bop Forged Cameron U Type With Shear Bonnets

Ask Lasest Price
Brand Name :	Sanyi
Model Number :	13 5/8"-5000
Certification :	API 16A
Price :	10000USD-15000USD
Payment Terms :	L/C, T/T
Supply Ability :	100 SET per month
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

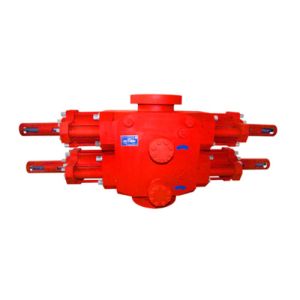

13 5/8"-5000PSI Double Ram Bop Forged Cameron U Type With Shear Bonnets

Cameron forged type double ram BOP, with shear bonnets and standard bonnets, is able to shear 5" G105 grade drill pipe. The metallic material temperature class T-20/350, The non-metallic material temperature class is -18℃-121℃ (BAB). The BOP meets API 16A latest standard, meets NACE 0175, H2S resistance. The rams are interchangeable with Cameron's. It is made in China, with short delivery.

Technical Specification of Double Ram BOP with Booster

Item	Single ram bop (with booster)		Double ram BOP (one chamber with booster)
Model	13 5/8”-5000psi		13 5/8”-5000psi
Upper connecting type	Studded	Flanged	Studded	Flanged
Lower connecting type	Flanged	Flanged	Flanged	Flanged
Weight Kg	5680	5888	10371	10651
Height H mm	750	960	1285	1495
Gravity G mm	490	515	805	830
Performance requirement level	PR2
Bore	346.1 mm (13 5/8″)
Test pressure of hydro-static pressure	51.8MPa (7,500psi)
Rated working pressure	34.5MPa (5,000psi)
Hydraulic control system strength pressure	31.1MPa(4,500psi)
Hydraulic control system rated working pressure	20.7MPa(3,000psi)
Recommended hydraulic control system operation pressure	8.4～10 .5MPa(1,222～1,518psi)
Cylinder diameter	342.9mm(13 1/2″)
Booster diameter	250mm(9 7/8″)
Oil volume required by opening one pair of ram	41L
Oil volume required by closing one pair of ram	43L
Oil volume required by closing one pair of ram(booster)	63L
Interface thread of hydraulic control pipe line	NPT 1
Specification of side outlet	3 1/8″-5,000psi
Temperature Rating	T-20/250(-29～121℃)(Or subjects to the contract)
Temperature Grades of Metal Material	T20/250(-29~121℃)( Or subjects to the contract)
Temperature Grades of Metal Material	BAB(extreme low pressure -18℃, continuous high temperature 66℃, extreme high temperature 93℃) (Or Subjects to the contract)
Closing Ratio	10.83:1
Closing Ratio(with booster)	17.4:1
Ram size for fitting	CSO, 2 3/8″, 2 7/8″, 3 1/2″, 4 1/2″, 5″, 5 1/2″, 7″, 9 5/8″, 9 7/8″, 4″,10 3/4″, 7 5/8″, 6 5/8″, 7 1/2″, 2 7/8″～5″, 3 1/2″～5 1/2″, 41/2″～7″, 2 3/8″～3 1/2″, 3 1/2″～5 7/8″, 3 1/2″dual hole, 2 7/8″dual hole, 2 7/8″X3 1/2″dual hole, ordinary shear ram, Sulfur-resistant Shear Ram Note:It can install same type Cameron Ram (except shear ram)
Note: The design and manufacturing of BOP are subject to API Spec 16A specification. The parts contacting with well fluid within BOP shall be able to resist hydrogen sulfide stress corrosion and all metallic parts contacting with well fluid meet the requirements of NACE MR-01-75/ISO15156.(except shear ram)

The specification and operating parameters of the shear ram

(With no well pressure)

Item	Drill pipe grade	Thickness (mm)	Close pressure of hydraulic system (MPa)	Note
1	5″,G-105 Grade	9.19	≥14
2	5 1/2″,G-105 Grade	10.54	≥17
3	5 ″,S-135 Grade	9.19	≥16
4	5 1/2″,S-135 Grade	9.17	≥18

Drawings:
